Export to CAD
Move your Trace plans into CAD, sketches into 3D, or elevations into your favorite design software. However you use Trace, it just got a lot easier to take your hand drawings to the next level! This works for exporting architecture, interior, landscape, or industrial design drawings into Autodesk AutoCAD, MicroStation, Vectorworks, SketchUp, Revit, Rhino, Archicad, Shapr3D, Adobe Illustrator, and more!
How to Export Your Drawings to CAD
Follow these steps to export your project as a scaled DXF vector file.
Step 1. Sketch & Hit Export

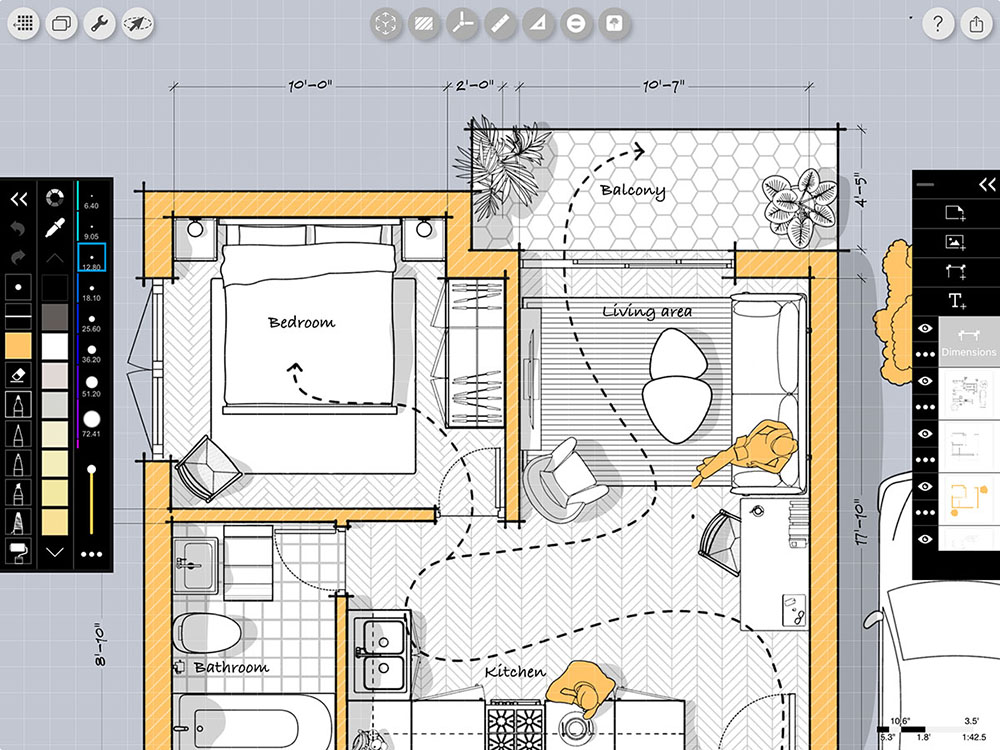

Draw something amazing! When you're done, tap the "Export" button on the top right.
Important Note
Vector export is only available for drawings created in the latest version of Trace. Please update here.
Step 2. Select Vector

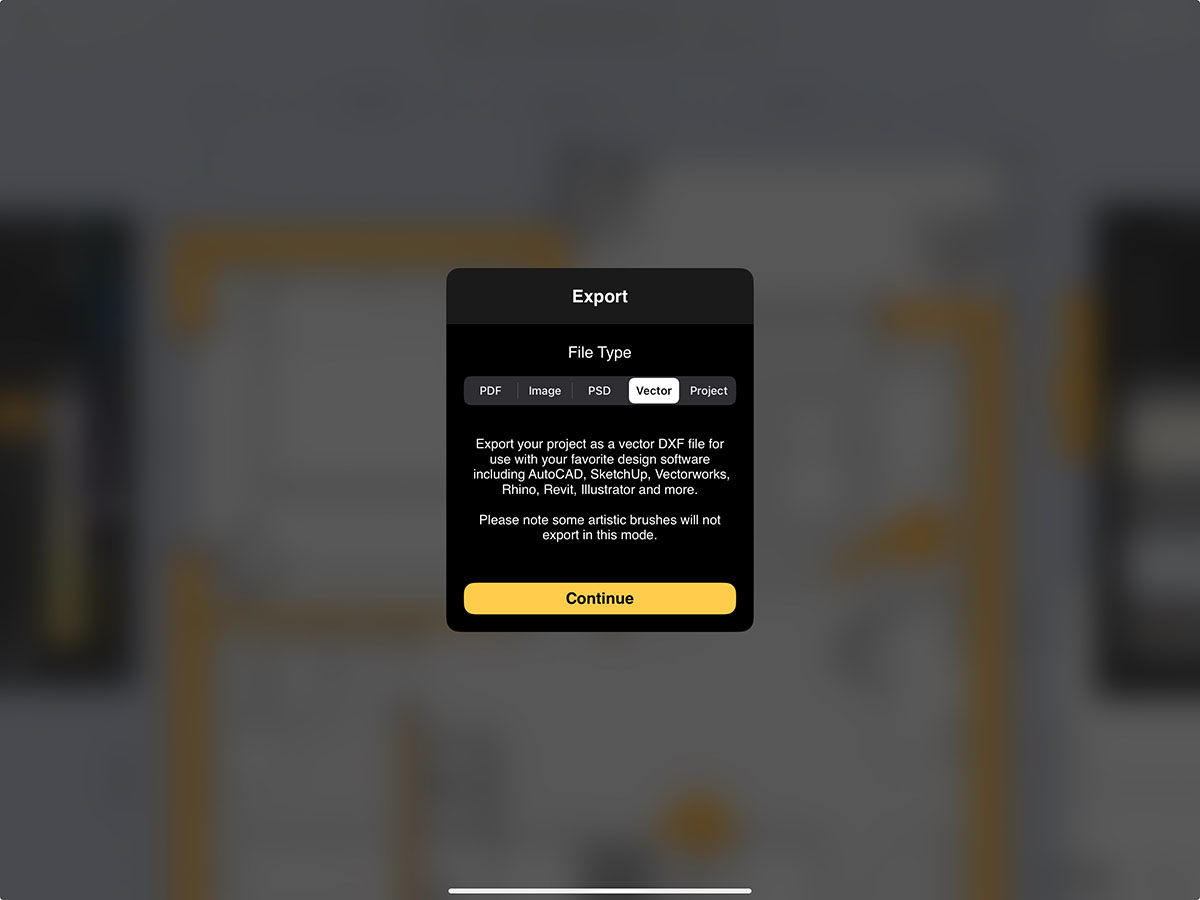

Select "Vector" to save your drawing as a DXF file. Then tap "Continue".
Step 3. Import

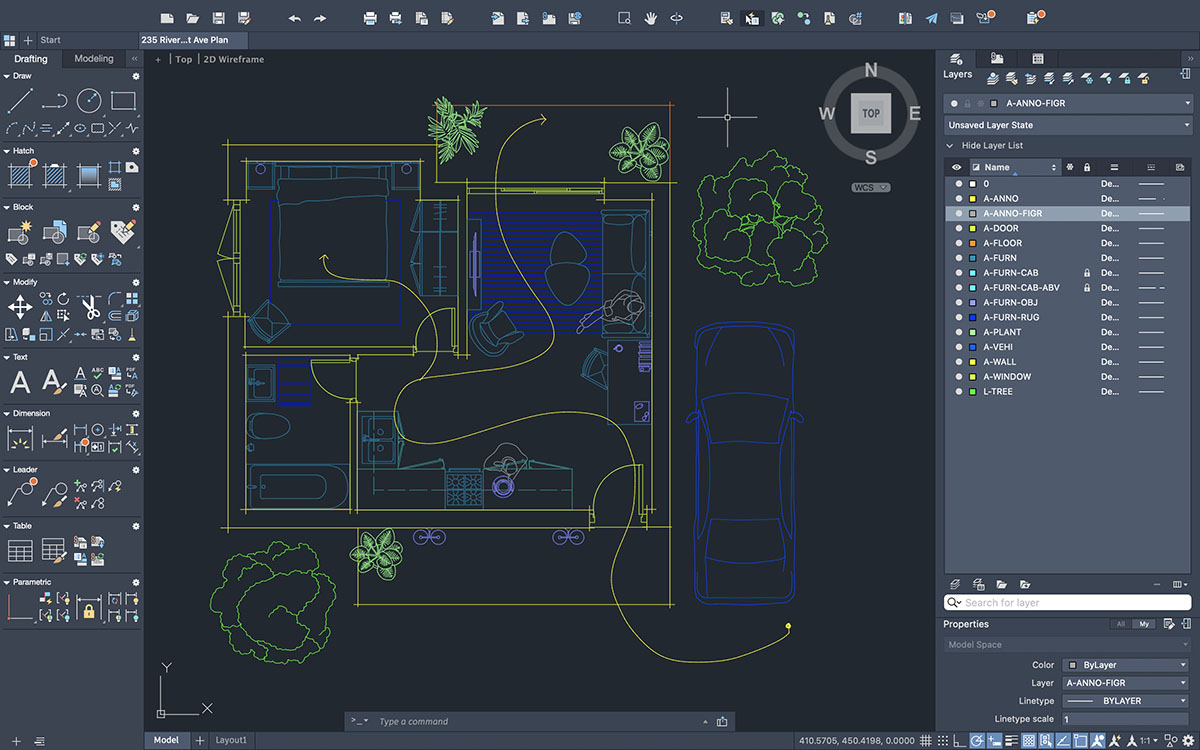

Import the DXF file into your favorite CAD, design, or 3D software including Autodesk AutoCAD, MicroStation, Vectorworks, SketchUp, Revit, Rhino, Archicad, Shapr3D, Adobe Illustrator, and more. From here you can advance your drawing, extrude it into a 3D model, or even use it to laser cut your design!
How To Video
Enjoy this how to video highlighting how to export to CAD
Additional Resources
How to Export to AutoCAD
How to Export to Vectorworks
How to Export to SketchUp
How to Export to Illustrator
How to Export to Rhino
How to Export to Shapr3D
